MeDFLIstvan Editor

Why MeDFLIstvan?

✔ True DFLI editing (4×2 blocks)

✔ Real hardware-compatible output

✔ Built-in DFLI converter pipeline

✔ Quality-first image creation

✔ Advanced brush system

✔ Editable clipboard with cool tools

✔ Magic Raster Editor with presets

✔ Project I/O with full state restore

✔ Fill collision detection + Safe Mode

Video Tutorials

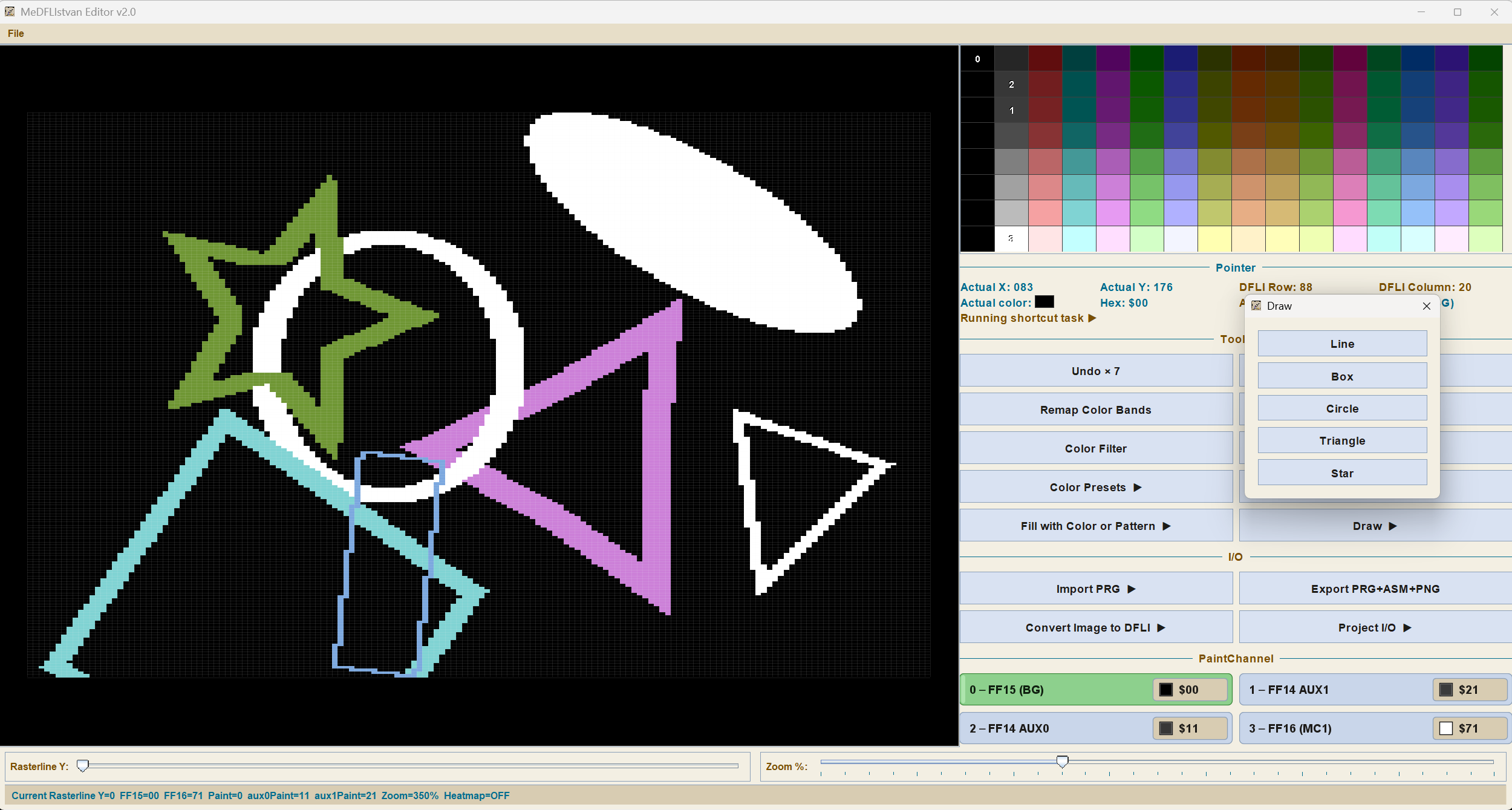

Gallery

Download

MeDFLIstvan v2.0 is available as standalone packages with bundled Java runtime. You do not need to install Java.

Windows / amd64

Recommended package for
Windows 10 / 11 64-bit systems.

Includes bundled Java runtime.

Download Windows

Linux / amd64

Standalone Linux build for
x86-x64 / amd64 desktop systems.

Includes bundled Java runtime.

Download Linux

macOS / Apple Silicon

Standalone macOS build for
Apple Silicon systems.

Includes bundled Java runtime.

Download macOS

Readme

Read important notes, package information and usage hints before downloading.

Technical Details

Resolution: 160×200 (true Plus/4 2:1 aspect)
DFLI structure: 4×2 pixel blocks
Full FF14 / FF15 / FF16 raster control
Per-line color configuration (200 raster lines)
AUX0 / AUX1 dual color bands
MultiDFLI memory layout compatible
PRG + ASM + PNG export pipeline
Istvanv / p4fliconv compatible workflow
Integrated DFLI converter (multi-quality presets)
Non-destructive project format (.mdfli)
160×200 hardware-accurate preview
Real-time heatmap and channel visualization
4 paint channels: FF15, AUX1, AUX0, FF16
Per-raster FF15 background color editing
Per-raster FF16 MC1 color editing
FF14 AUX color handling across DFLI sub-bands
4×2 DFLI block-aware painting
Channel-safe brush workflow
Right-click cyclic pixel channel rotation
Alt-click eyedropper for channel + color pickup
Brush sizes from 1×1 to 64×64

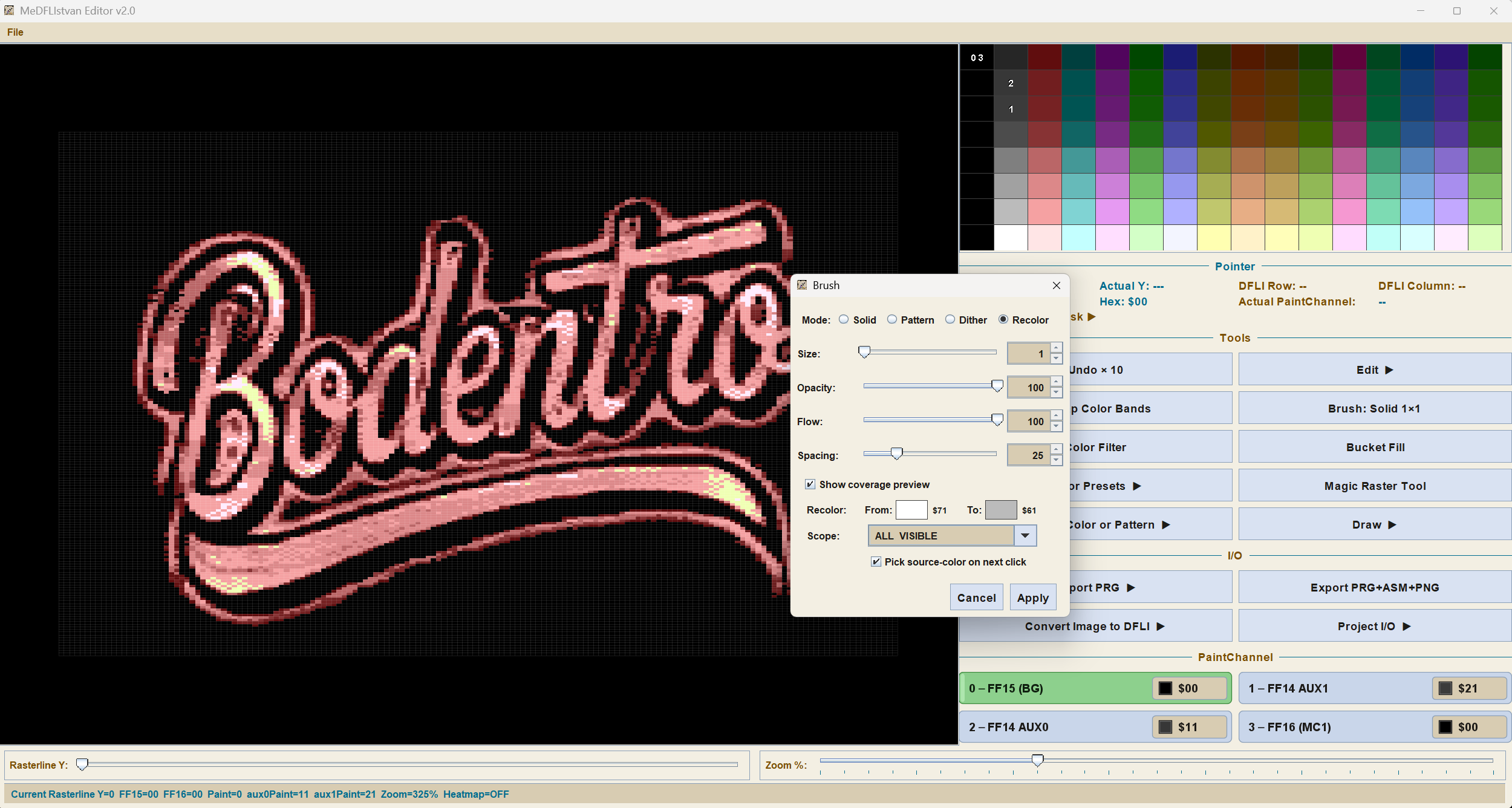

Pattern, dither and recolor brush modes
Undo / Redo snapshot history
Selection-aware editing: rectangle and freehand masks
Clipboard stamp with channel and color data

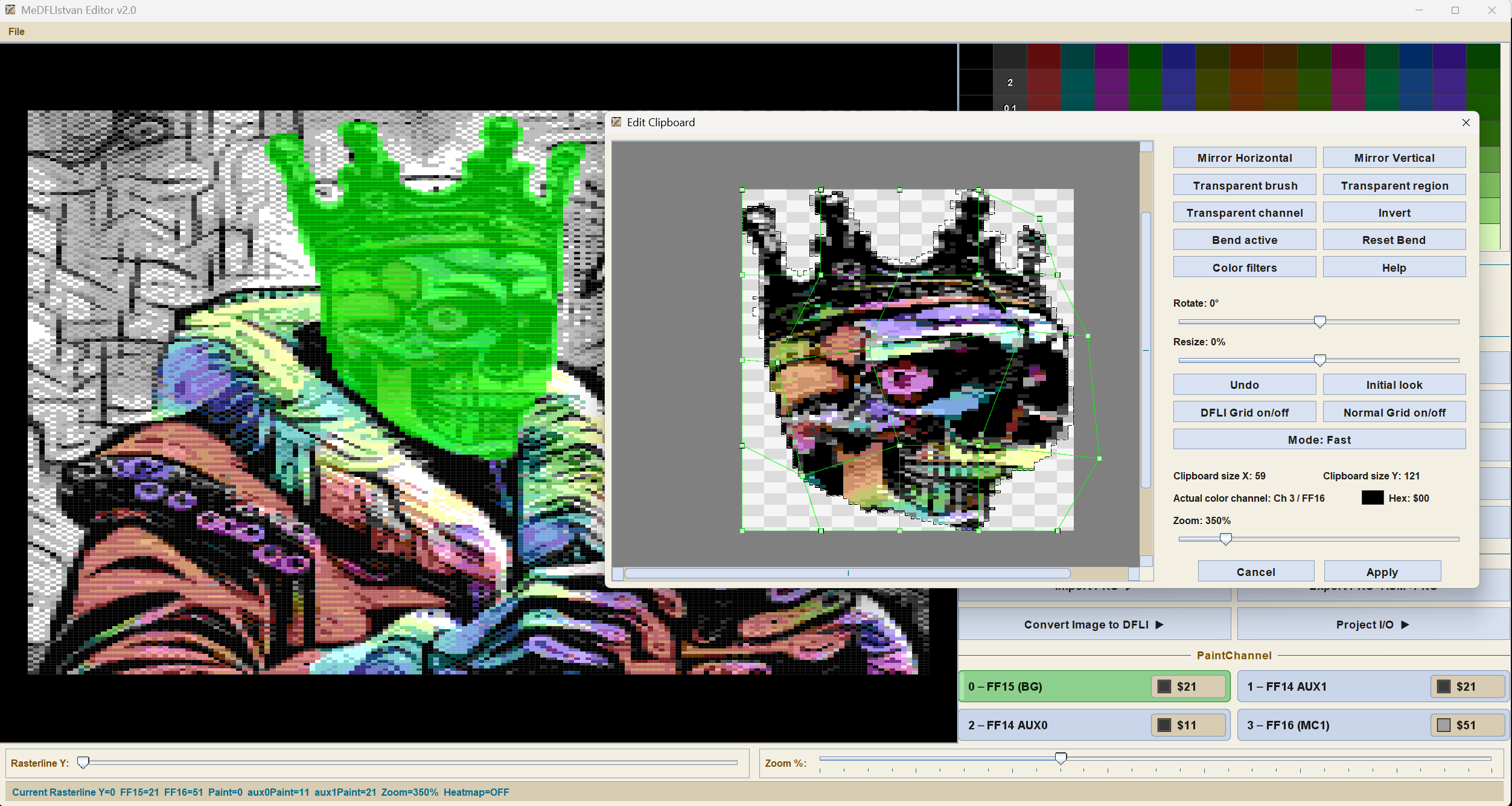

Editable clipboard transformations
Magic Raster FF15 / FF16 generation

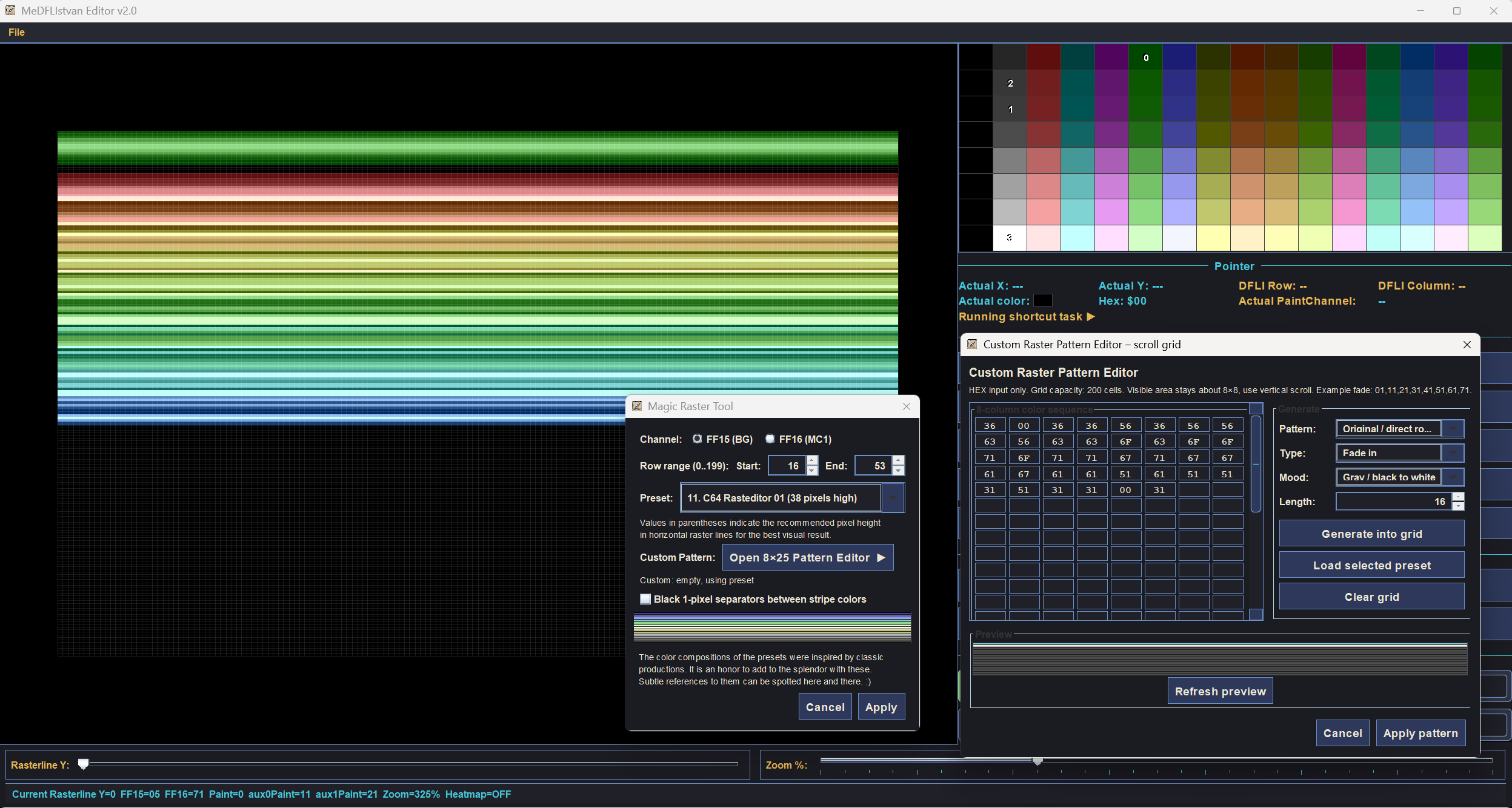

Custom 8×25 raster pattern editor

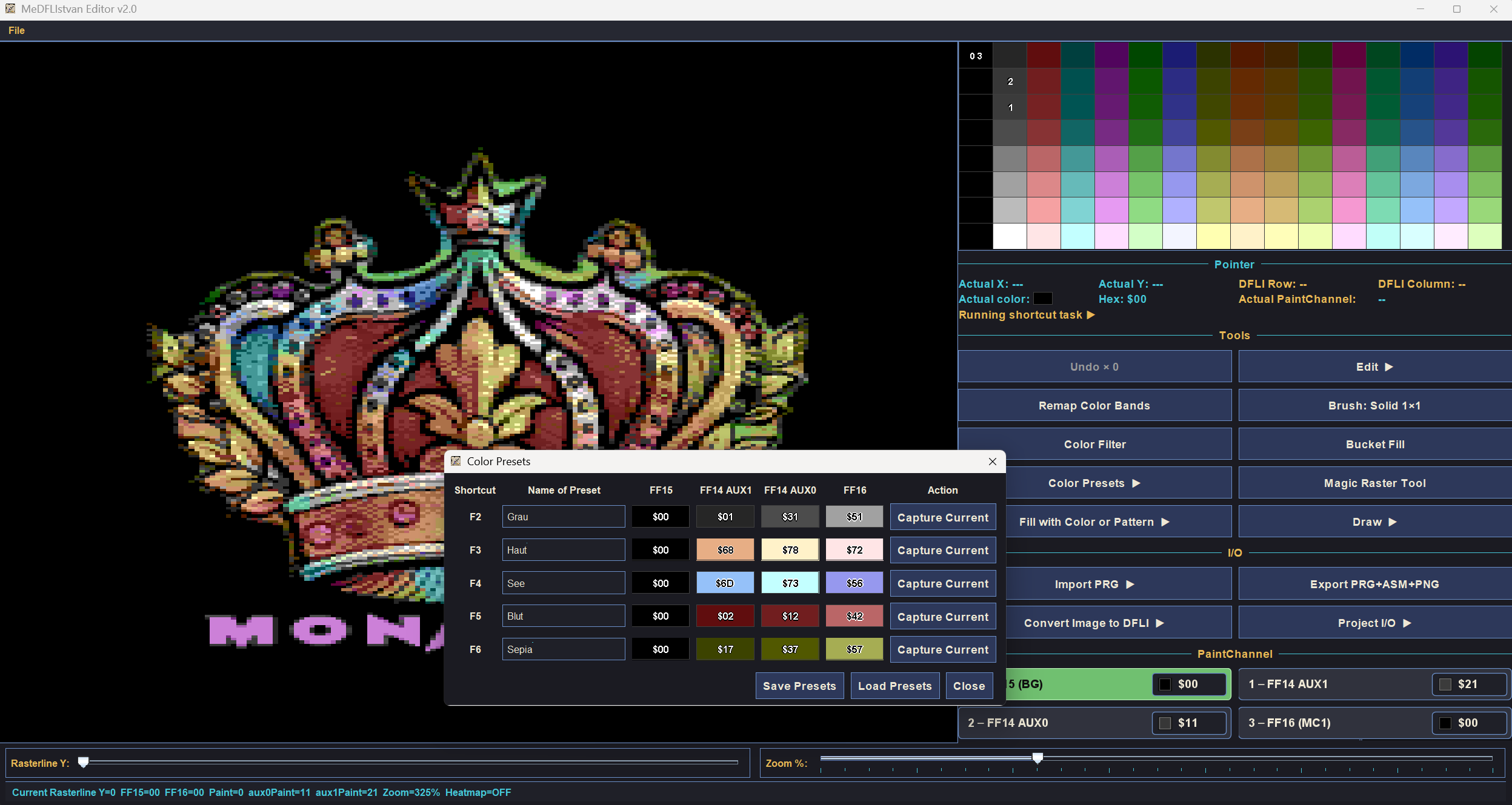

Color Presets for FF15 / AUX1 / AUX0 / FF16

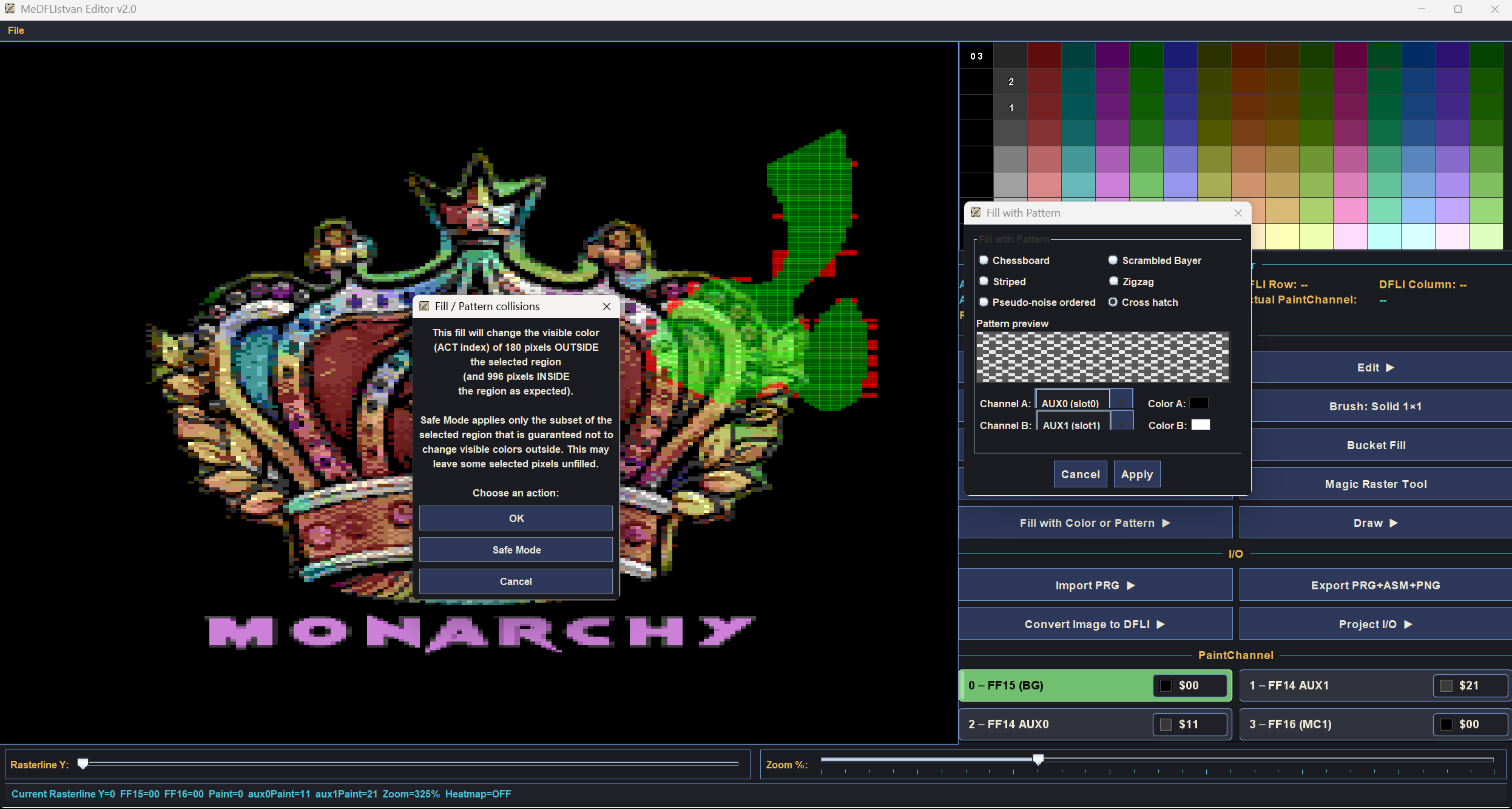

Fill collision detection and Safe Mode

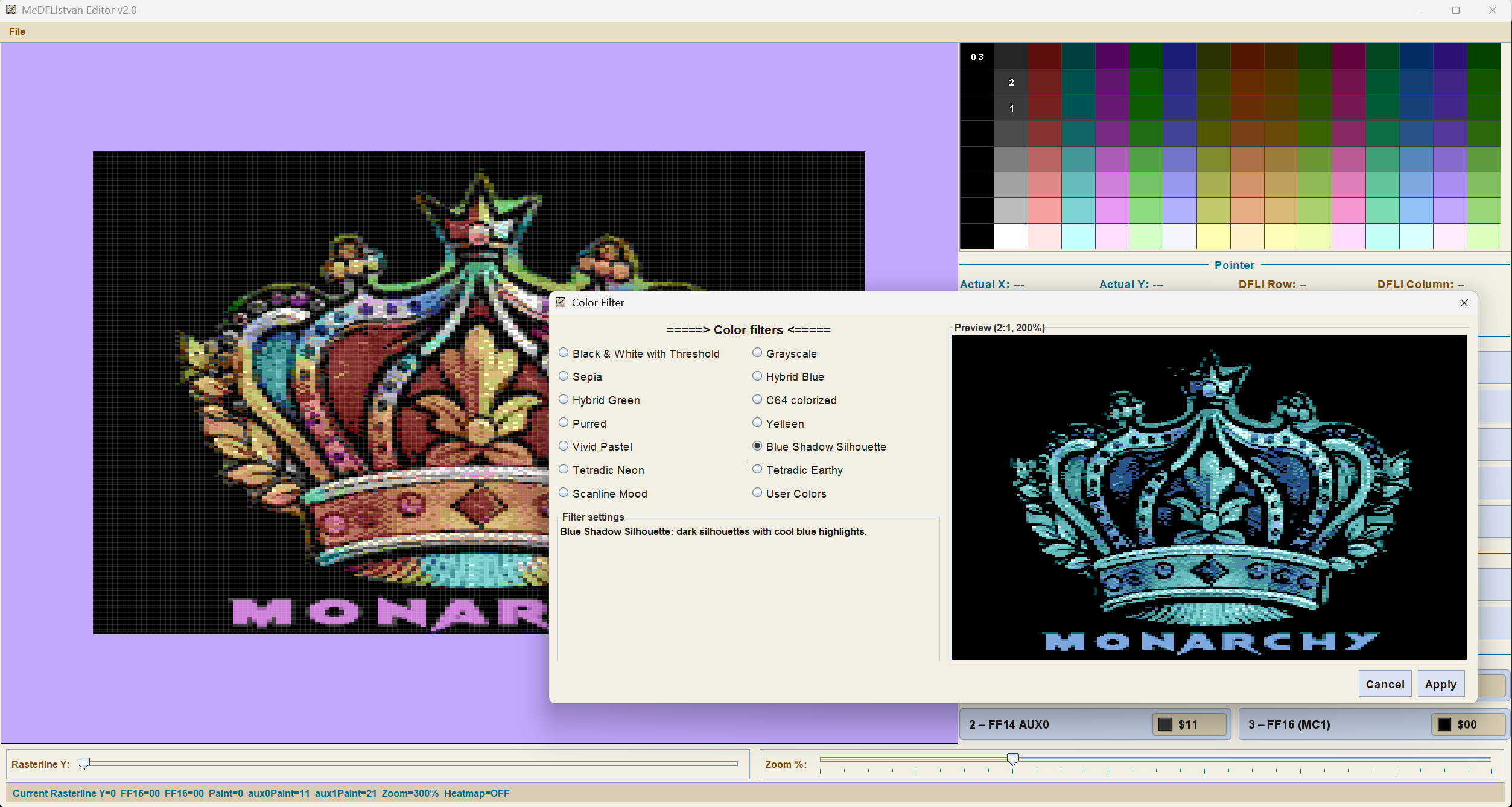

Plus/4 palette-aware color filtering

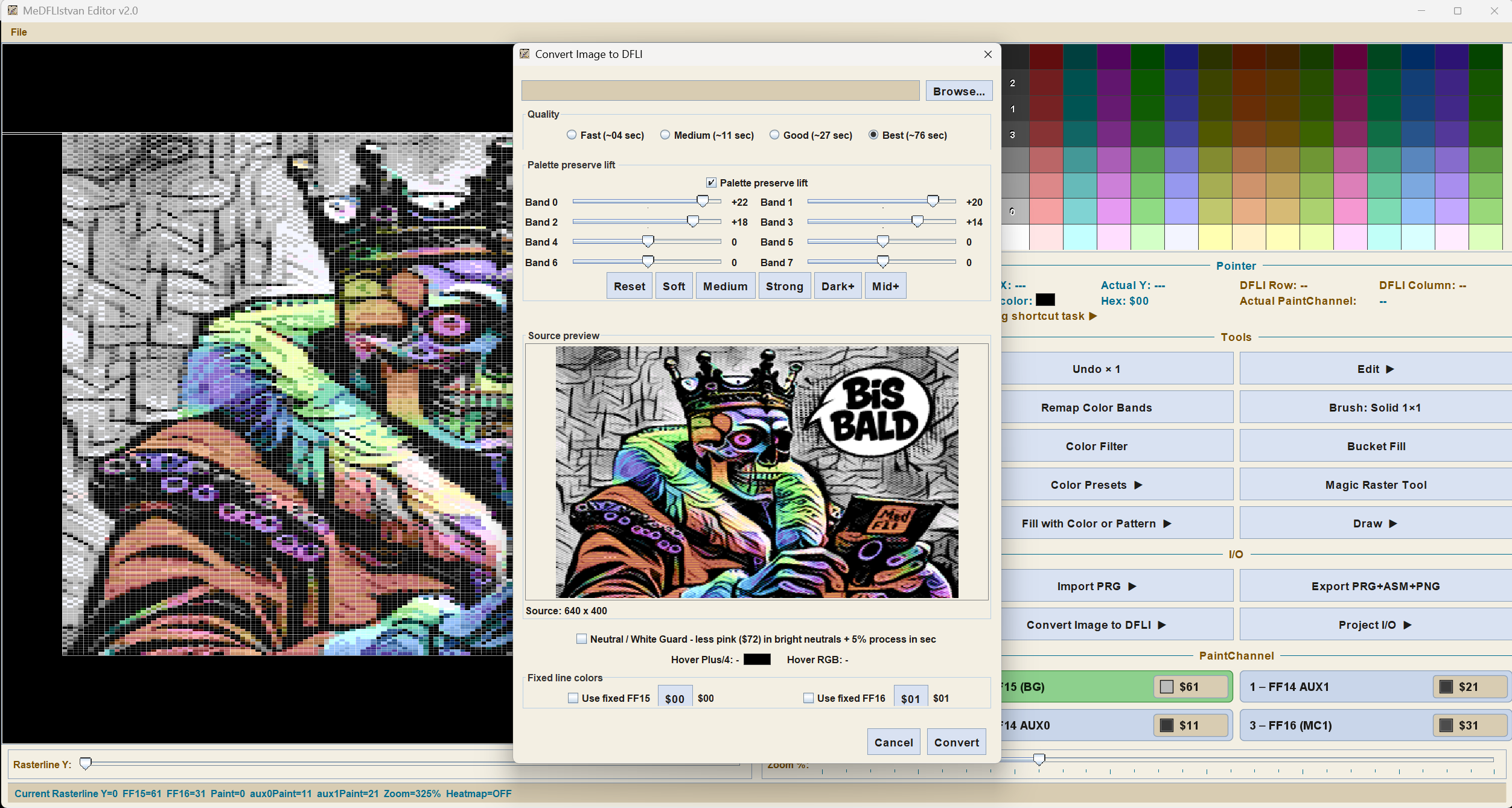

DFLI image converter with Fast / Medium / Good / Best presets
Fixed FF15 / FF16 converter options
Pink / magenta softening option for converter output

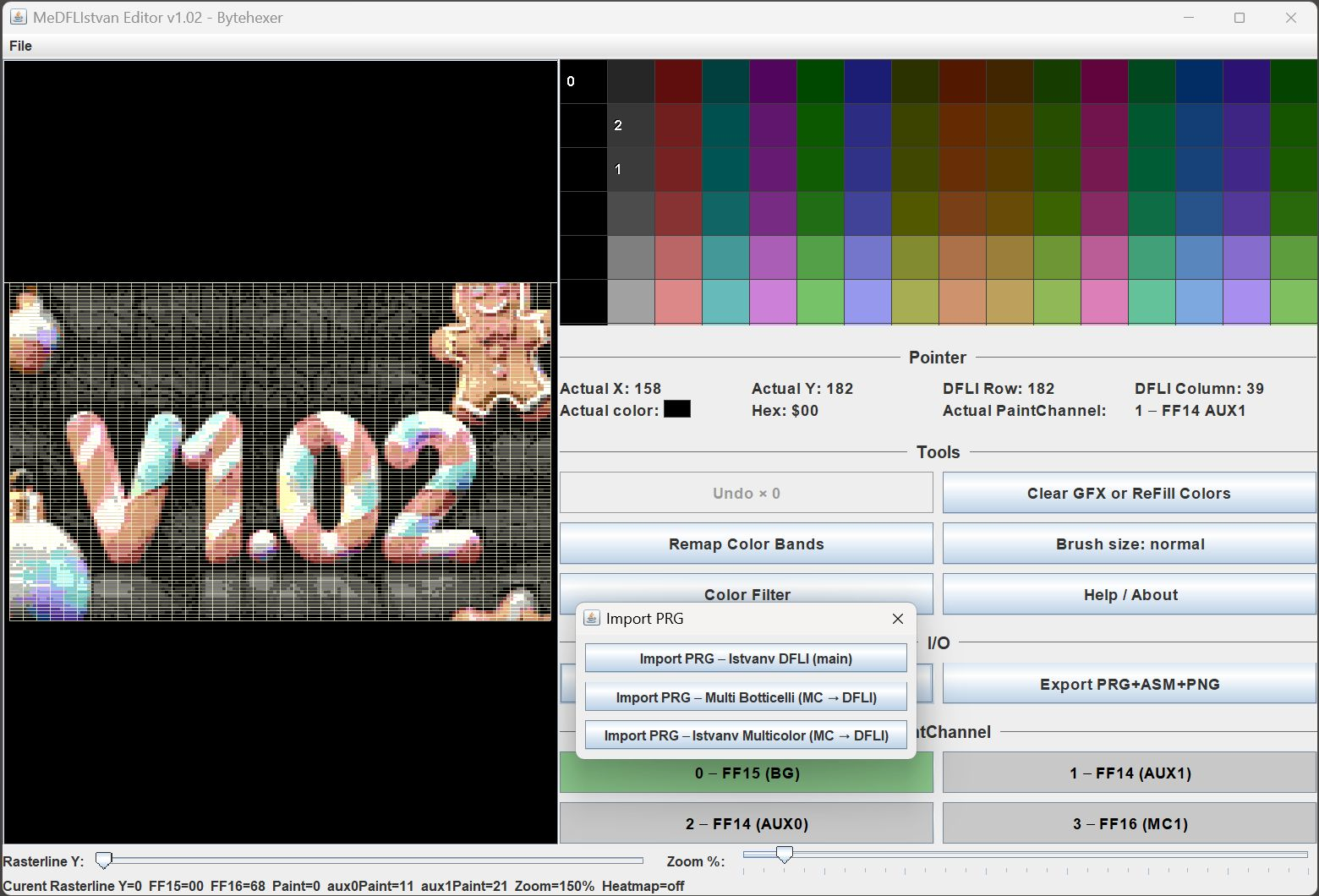

Import: istvanv DFLI PRG + Multi Botticelli multicolor PRG + Istvanv Multicolor PRG
Export: runnable PRG using DFLI template + ASM data tables + 320×200 PNG preview
Project format: .mdfli full editor state

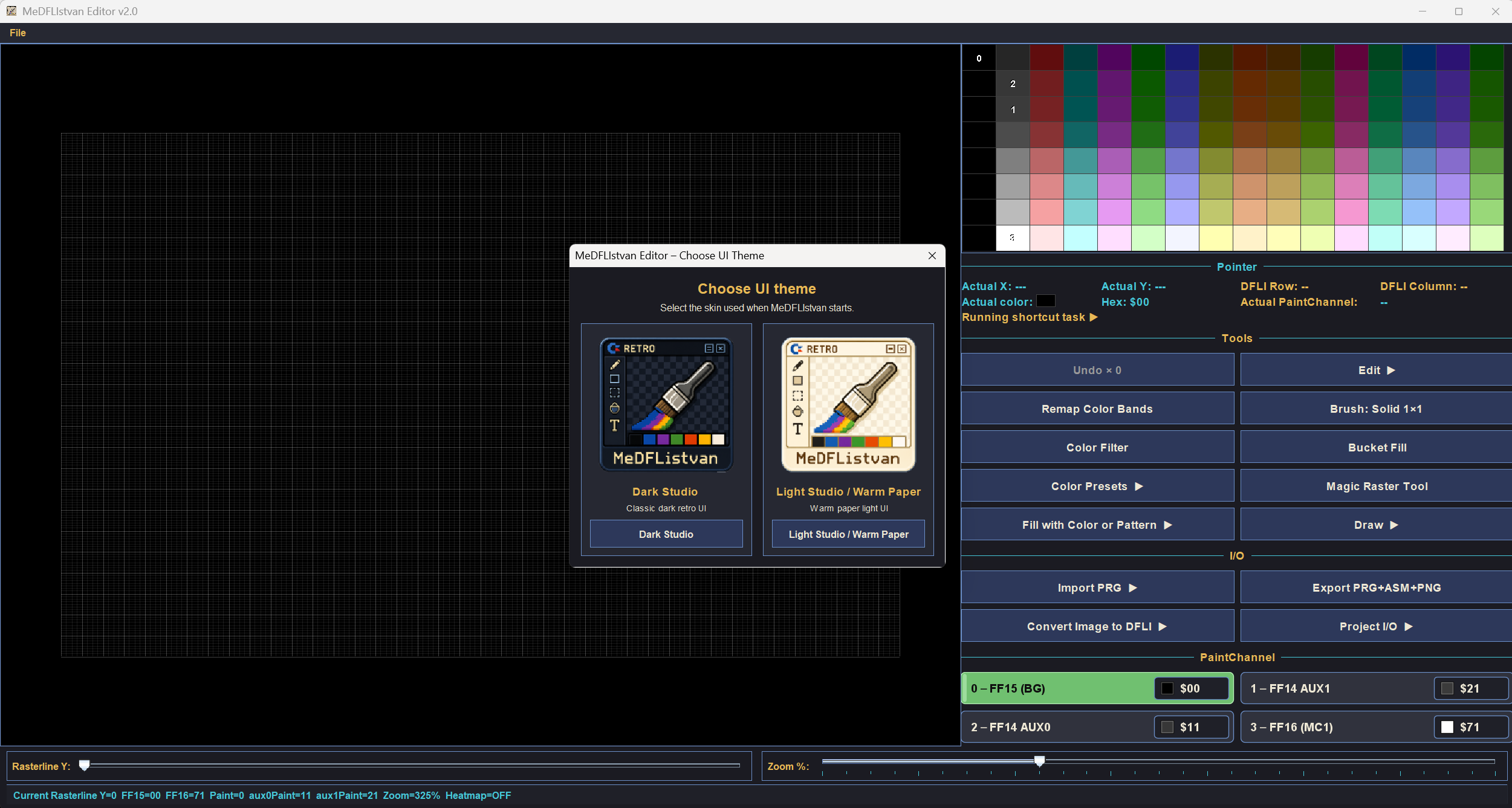

Dark Studio and Light Studio UI themes
Bundled Java runtime for Windows, Linux and macOS (thanks to nukem for the testing) packages.
